HYPERDISC T Series

HIGH PERFORMANCE DISC TILLAGE

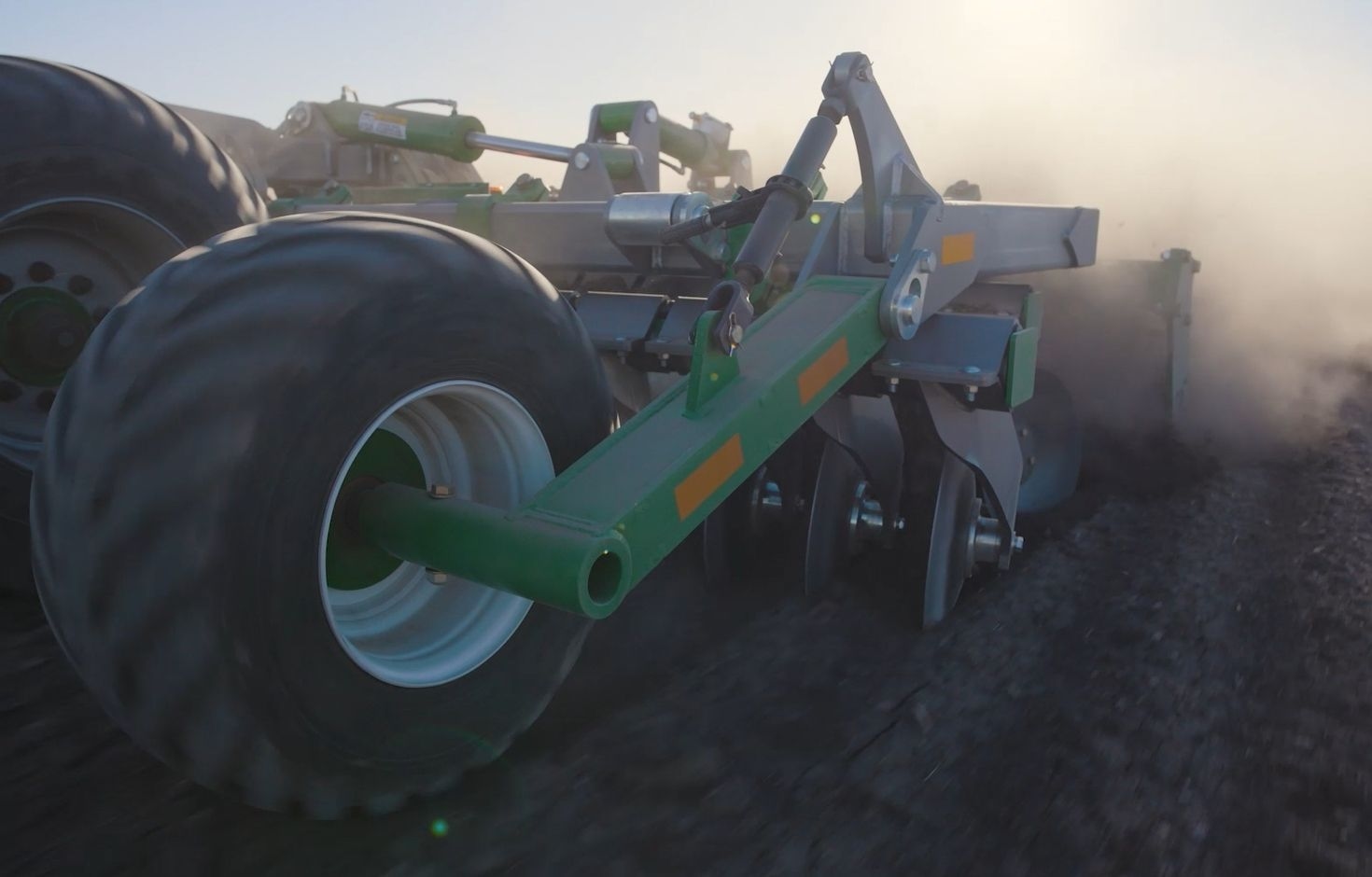

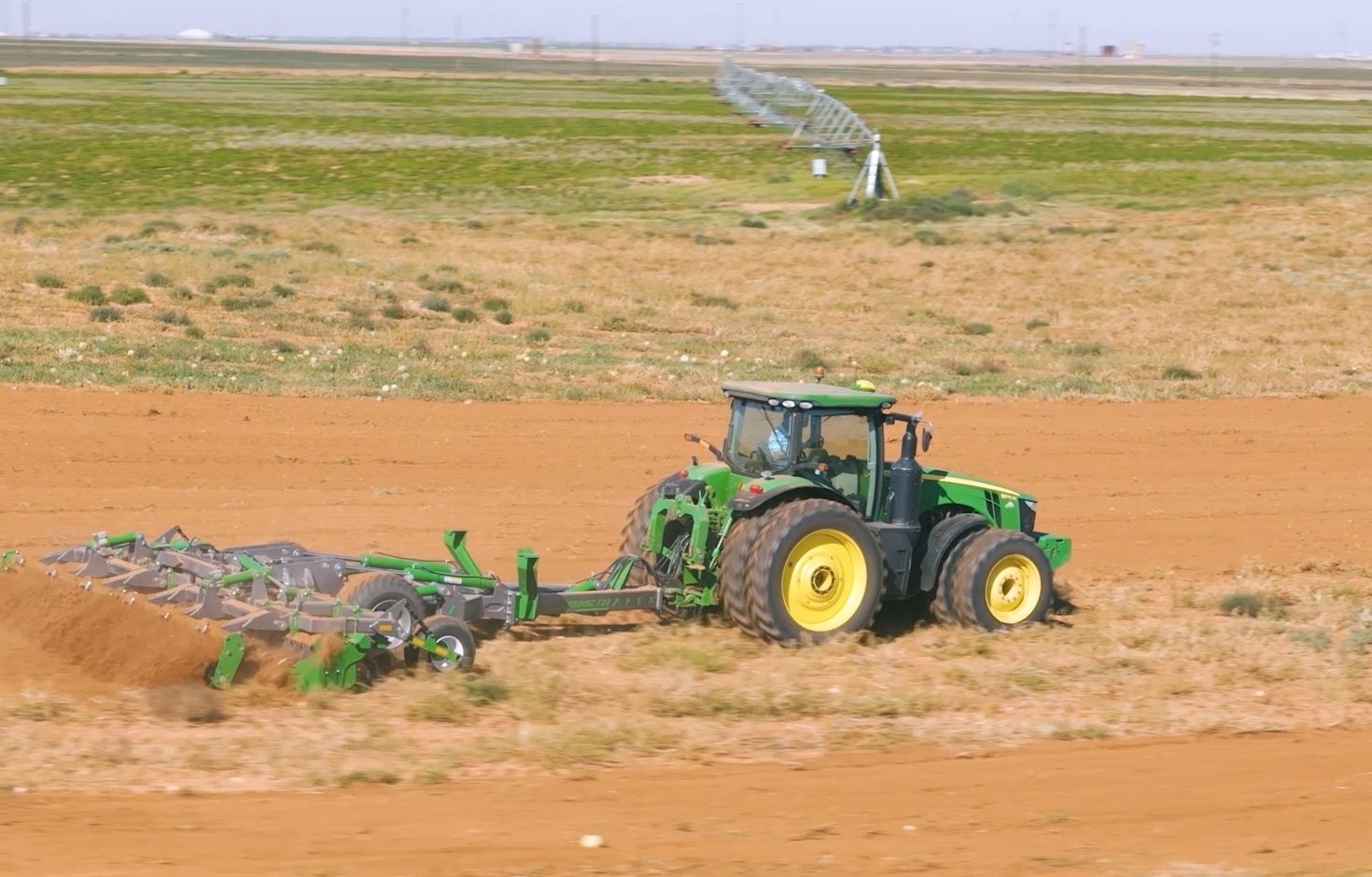

The APEX HYPERDISC is a versatile high speed tillage tool made to manage heavy residue, shred weeds, level ruts and prepare perfect seed beds.

The HYPERDISC delivers high daily output with minimum effort:

Cover more acres per hour; this machine is designed to operate at high speeds of 8 to 12 mph, ensuring you get more done with less time.
Greaseless technology is used on all hinge points, reducing maintenance time and getting your equipment into the field faster.
Create ideal soil conditions with minimal passes.

The HYPERDISC is a tool designed for many different applications:

Turn and shred heavy residue; from thick stubble and weeds to cover crops and grasslands.
Destroy clods, level ruts, and leave a perfectly prepared seed bed.

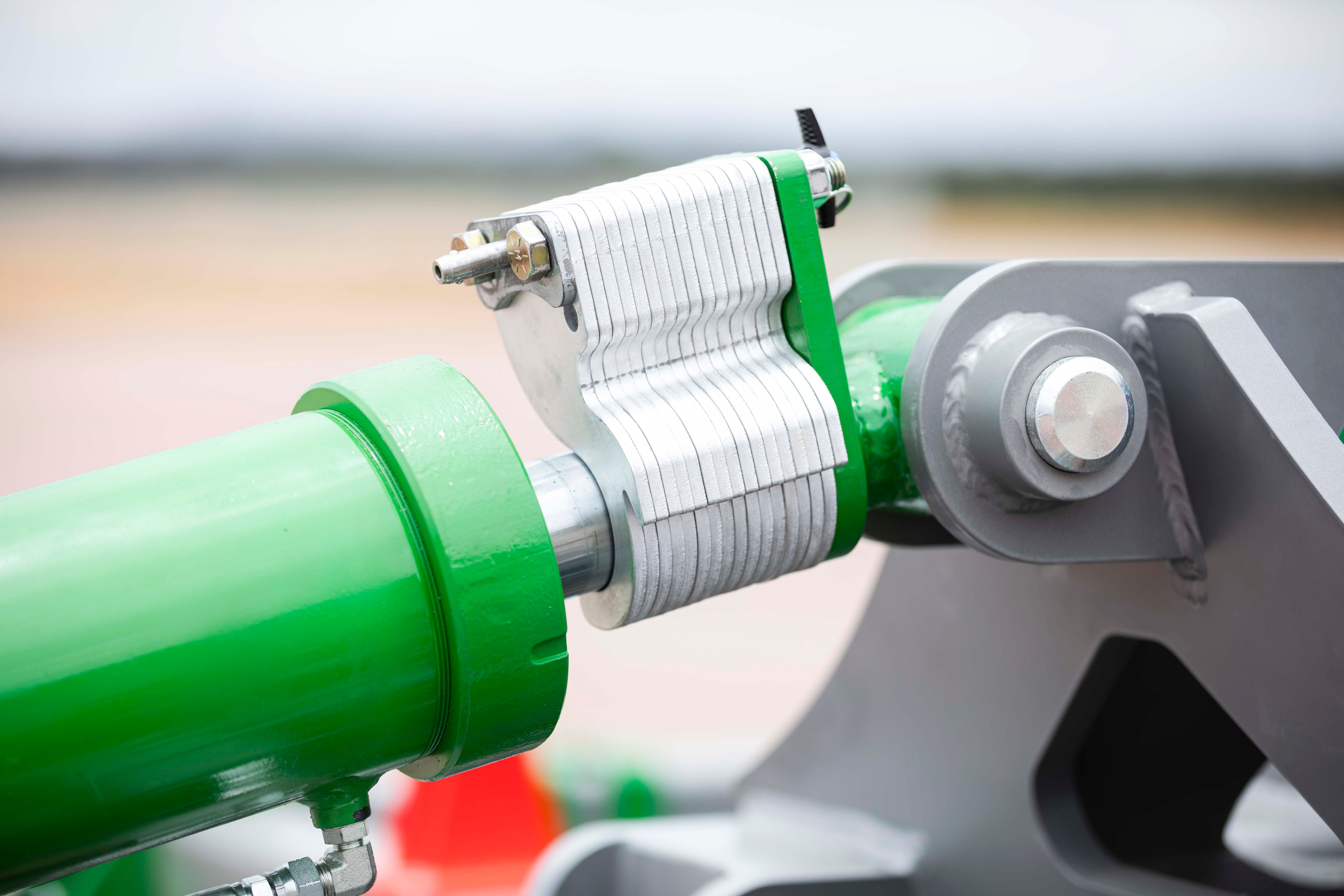

With easy to use and maintenance free depth adjustments, you can till your fields from a shallow 2 inches down to 6 inches deep.

The HYPERDISC is engineered to withstand nearly any condition:

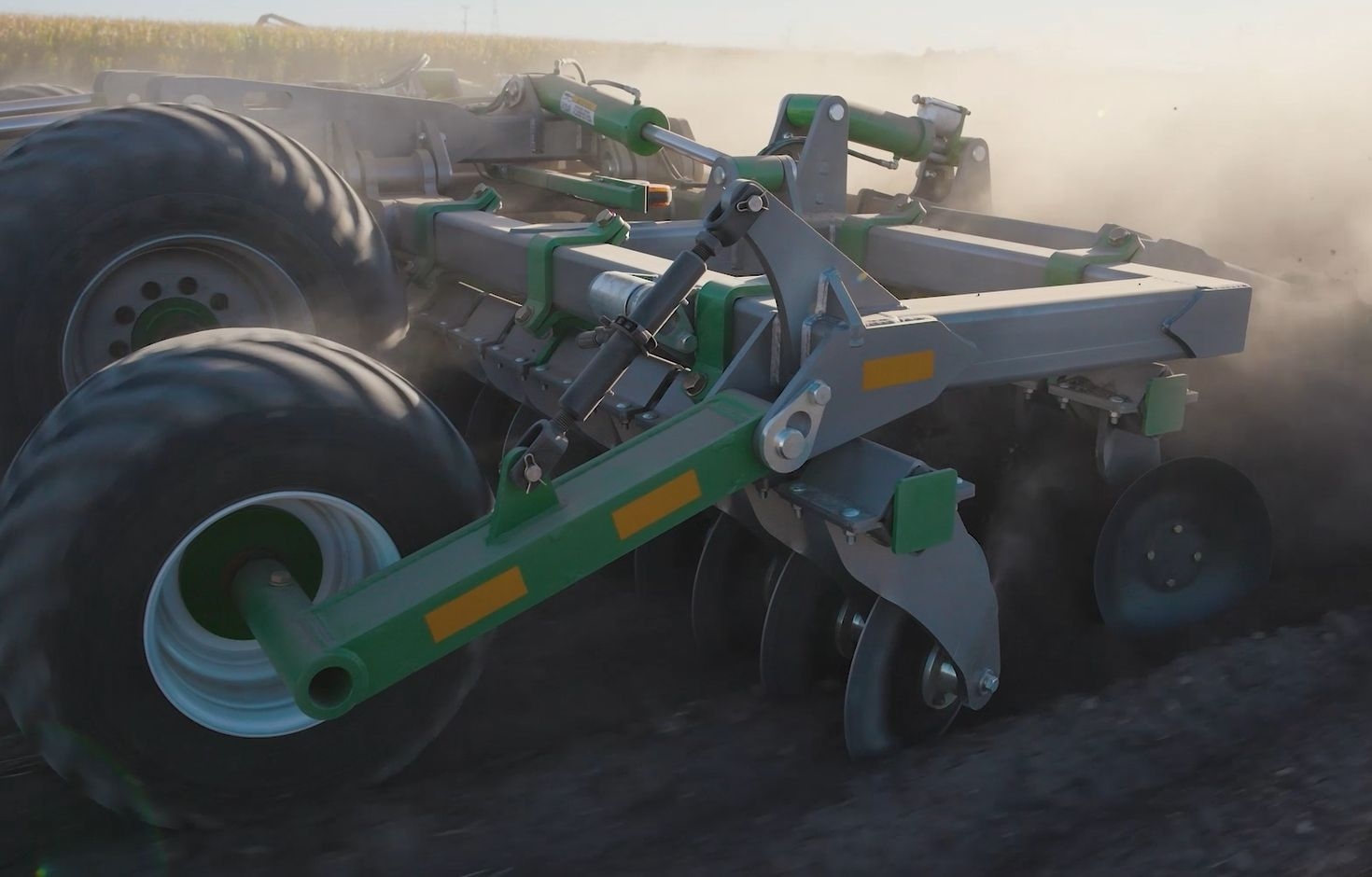

The engineered carriage frame delivers the durability you expect, and the weight you need for the downforce required to tackle the most extreme soil and trash conditions.
The machine is engineered for a balanced and straight pull, ensuring there's no excessive bouncing or negative tongue weight.

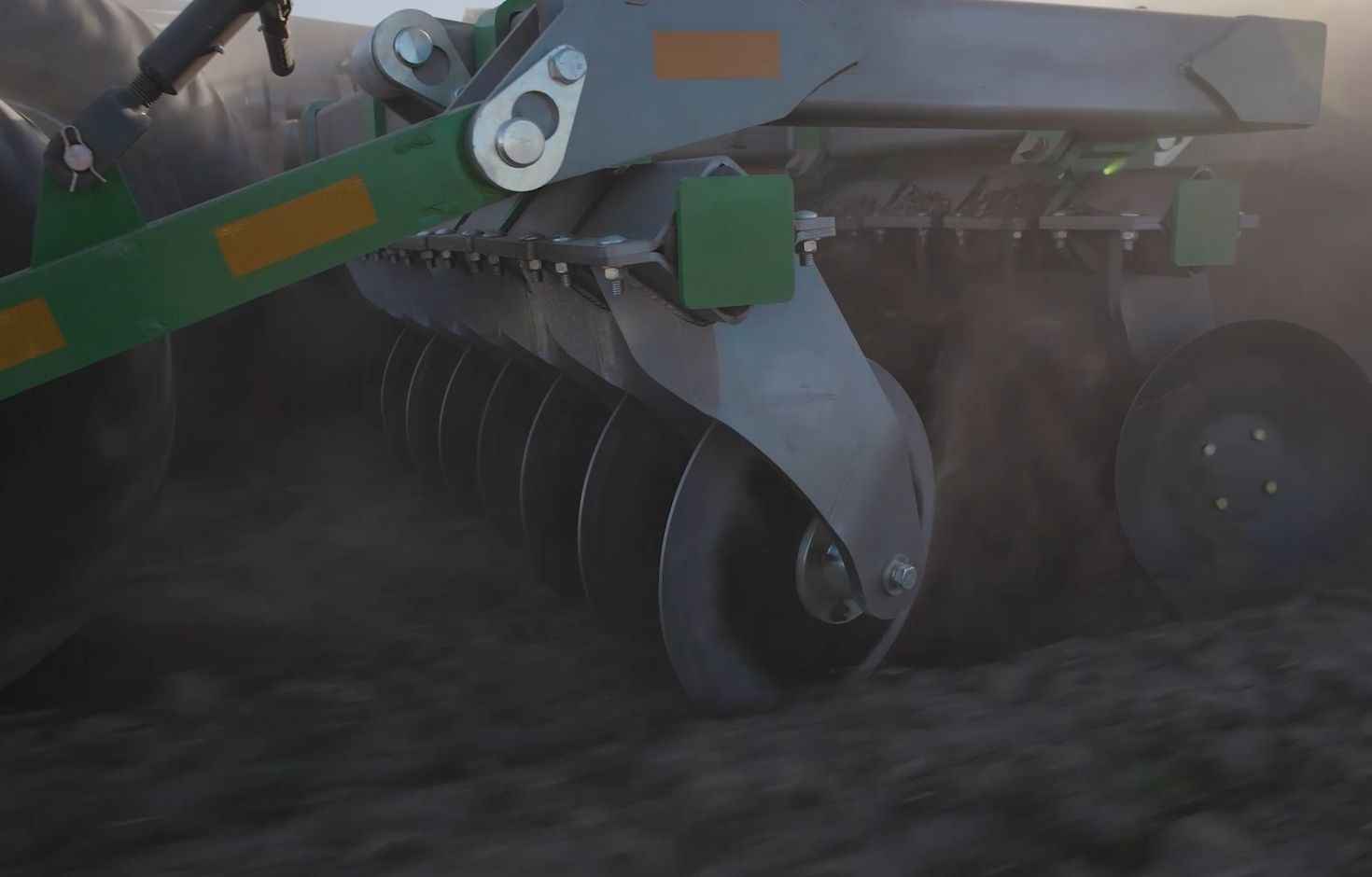

The weight is concentrated where it's needed most: at the discs, with a downforce of nearly 1000 lbs/ft.

	HYPERDISC T20	HYPERDISC T26
Performance
Acres per hour at 12 MPH	29 acres per hour	37 acres per hour
Horsepower requirement	300-360	390-450
Working width	20 ft	26 ft
Working depth with 20" discs	2" - 6"	2" - 6"
Working depth with 22" discs	2" - 8"	2" - 8"
Specifications
Number of discs	50	62
Disc size	20" / 22"	20" / 22"
Front disc angle	14 degrees	14 degrees
Rear disc angle	17 degrees	17 degrees
Disc spacing	5"	5"

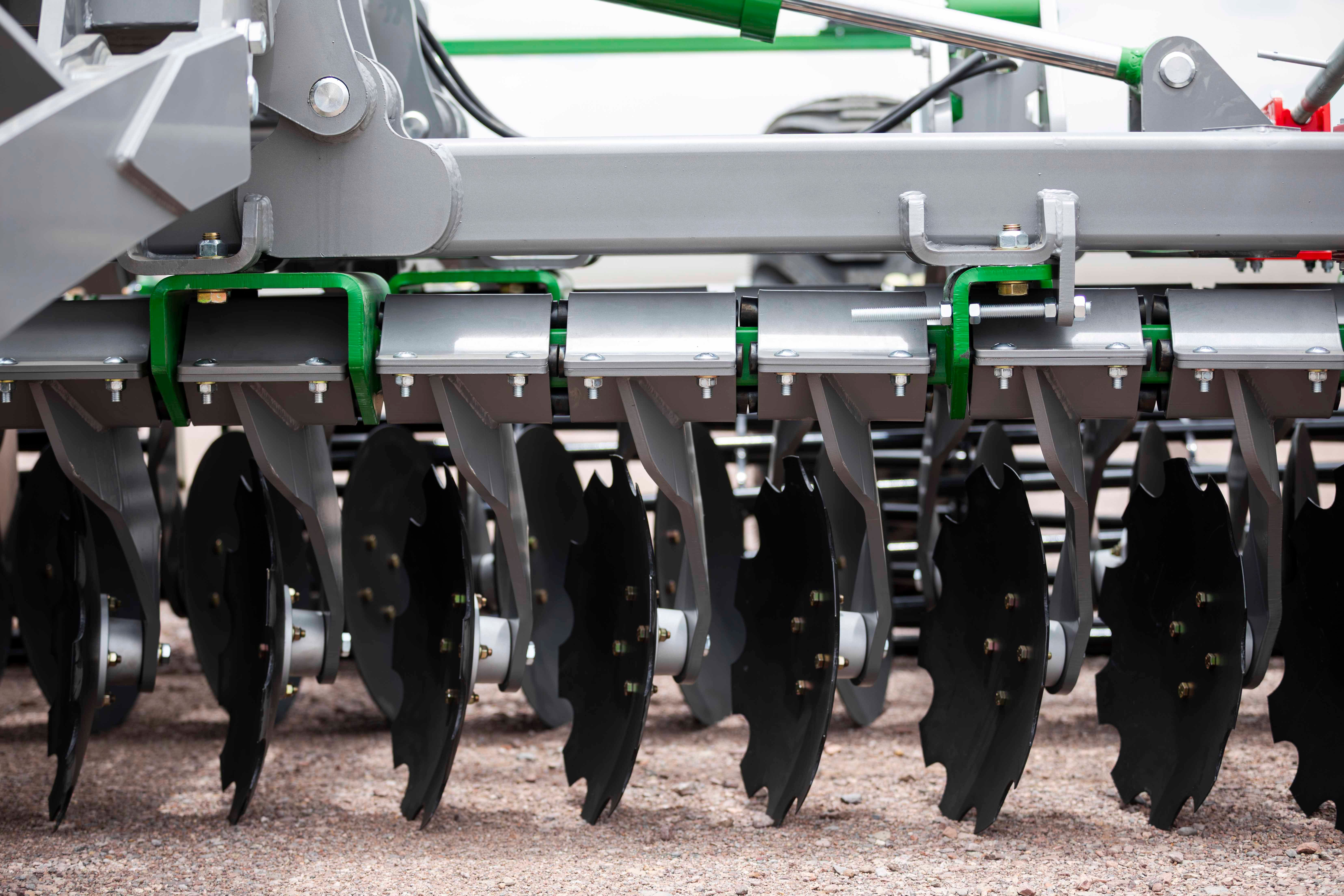

Disc mounting	1 5/8" rubber torsion rods	1 5/8" rubber torsion rods
Disc hubs	FKL Maintenance free bearing hubs	FKL Maintenance free bearing hubs
Transport tires	600/50 R22.5 flotation tires	600/50 R22.5 flotation tires
Gauge wheel tires	400/60 R15.5 flotation tires	400/60 R15.5 flotation tires
Gauge wheels	Manual	Manual

	HYPERDISC T32	HYPERDISC T34	HYPERDISC T38	HYPERDISC T42
Performance
Acres per hour at 12 MPH	44 acres per hour	48 acres per hour	53 acres per hour	58 acres per hour
Horsepower requirement	450-520	480-550	530-620	600 +
Working width	32 ft	34 ft	38 ft	42 ft
Working depth with 20" discs	2" - 6"	2" - 6"	2" - 6"	2" - 6"
Working depth with 22" discs	2" - 8"	2" - 8"	2" - 8"	2" - 8"
Specifications
Number of discs	76	82	90	98
Disc size	20" / 22"	20" / 22"	20" / 22"	20" / 22"
Front disc angle	14 degrees	14 degrees	14 degrees	14 degrees
Rear disc angle	17 degrees	17 degrees	17 degrees	17 degrees
Disc spacing	5"	5"	5"	5"
Disc mounting	1 5/8" rubber torsion rods	1 5/8" rubber torsion rods	1 5/8" rubber torsion rods	1 5/8" rubber torsion rods
Disc hubs	FKL Maintenance free bearing hubs	FKL Maintenance free bearing hubs	FKL Maintenance free bearing hubs	FKL Maintenance free bearing hubs
Transport tires	600/50 R22.5 flotation tires	600/50 R22.5 flotation tires	600/50 R22.5 flotation tires	600/50 R22.5 flotation tires
Gauge wheel tires	500/60 R22.5 flotation tires	500/60 R22.5 flotation tires	500/60 R22.5 flotation tires	500/60 R22.5 flotation tires
Gauge wheels	Hydraulic	Hydraulic	Hydraulic	Hydraulic

All pins have self lubricating composite bushings making the machine maintenance free.

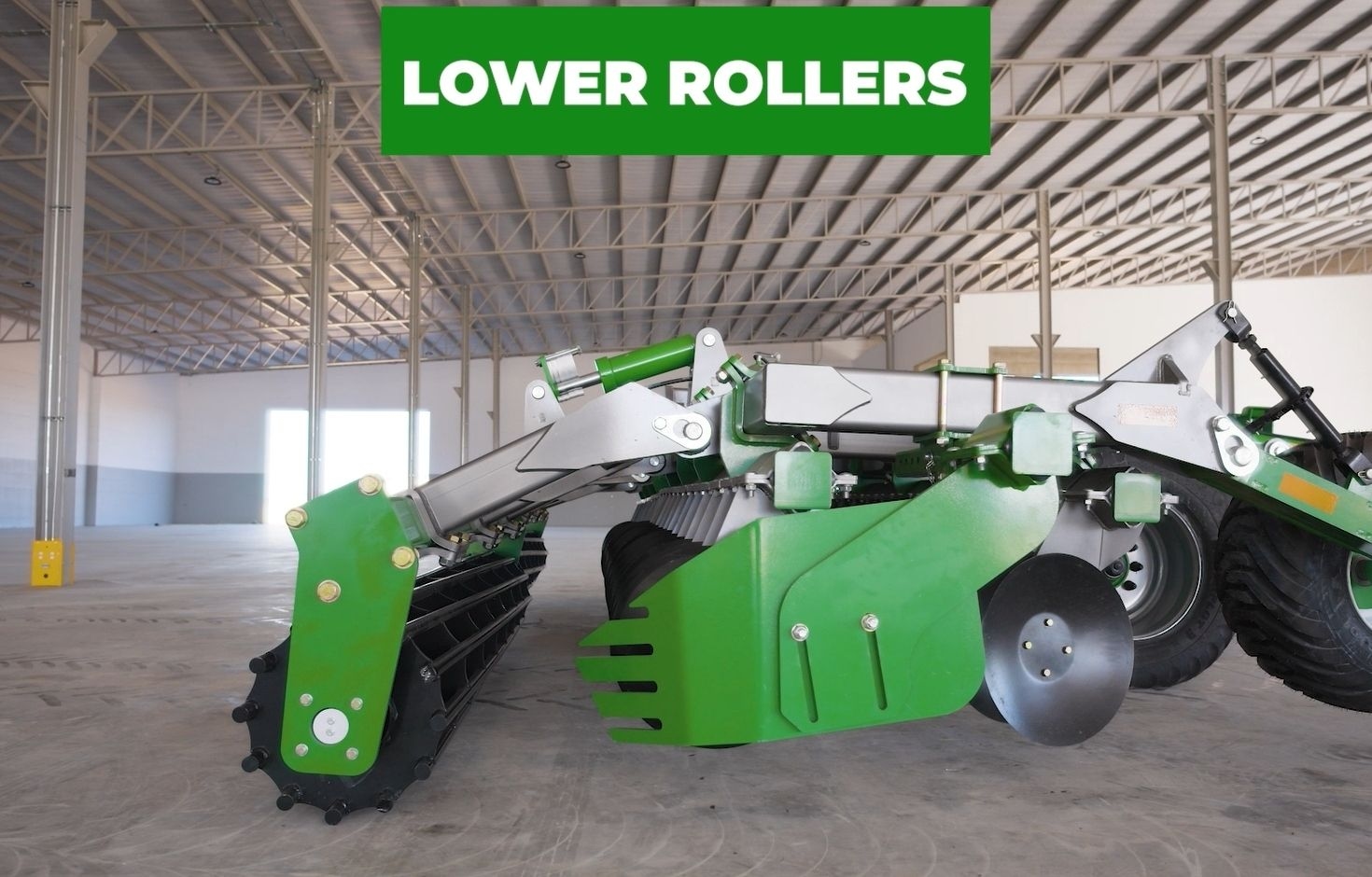

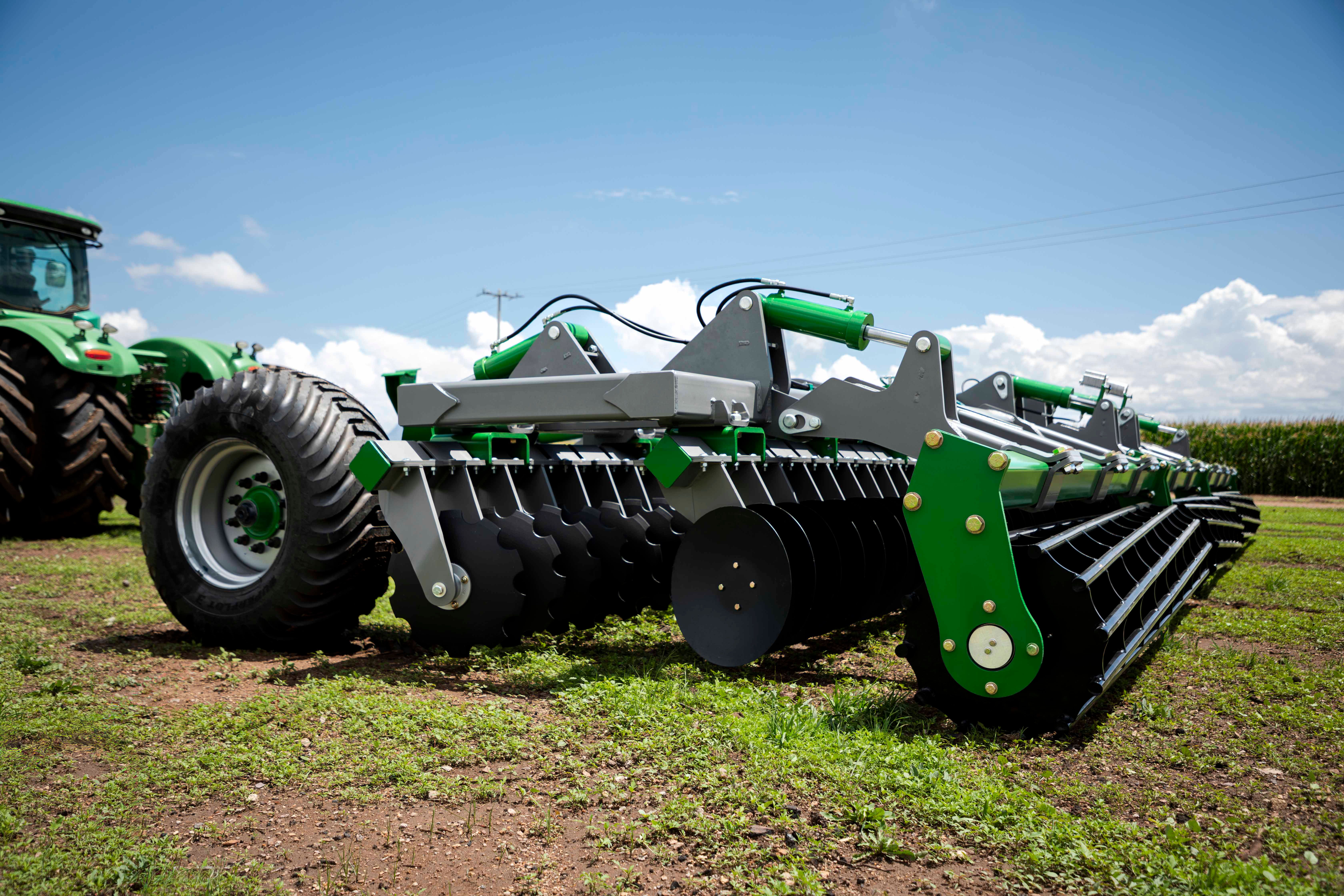

The robust 12 bar cage roller is constructed from 1.5" solid steel bars, for maximum strength and durability.

Every inch of the machine is built from premium, high strength, high tensile steel, ensuring structural resilience.

The machine is built to float across any kind of terrain curvature, adapting seamlessly to hills, slopes and steep inclines.

The large hydraulic jack makes it easy to hook up and unhook the machine.

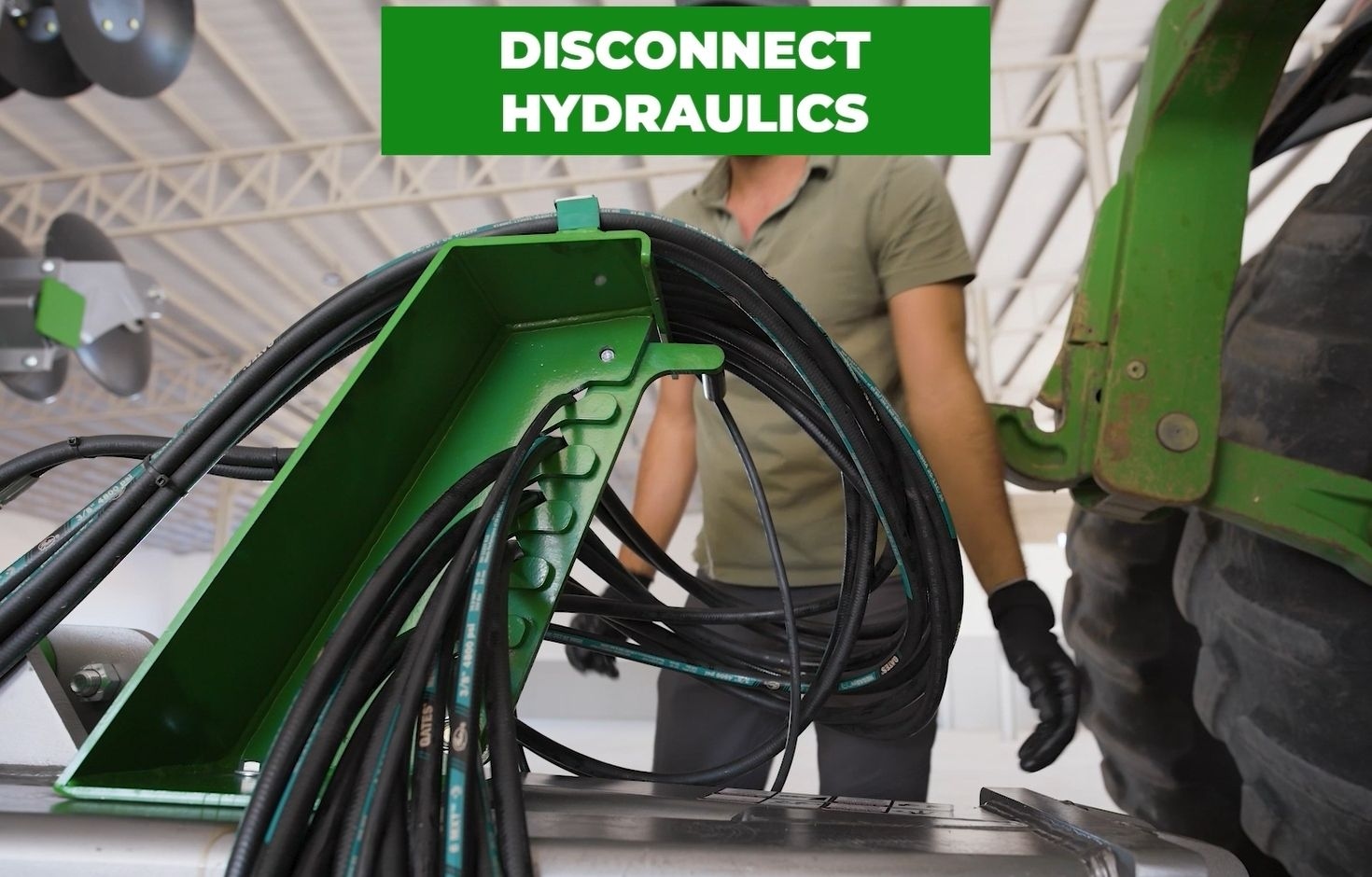

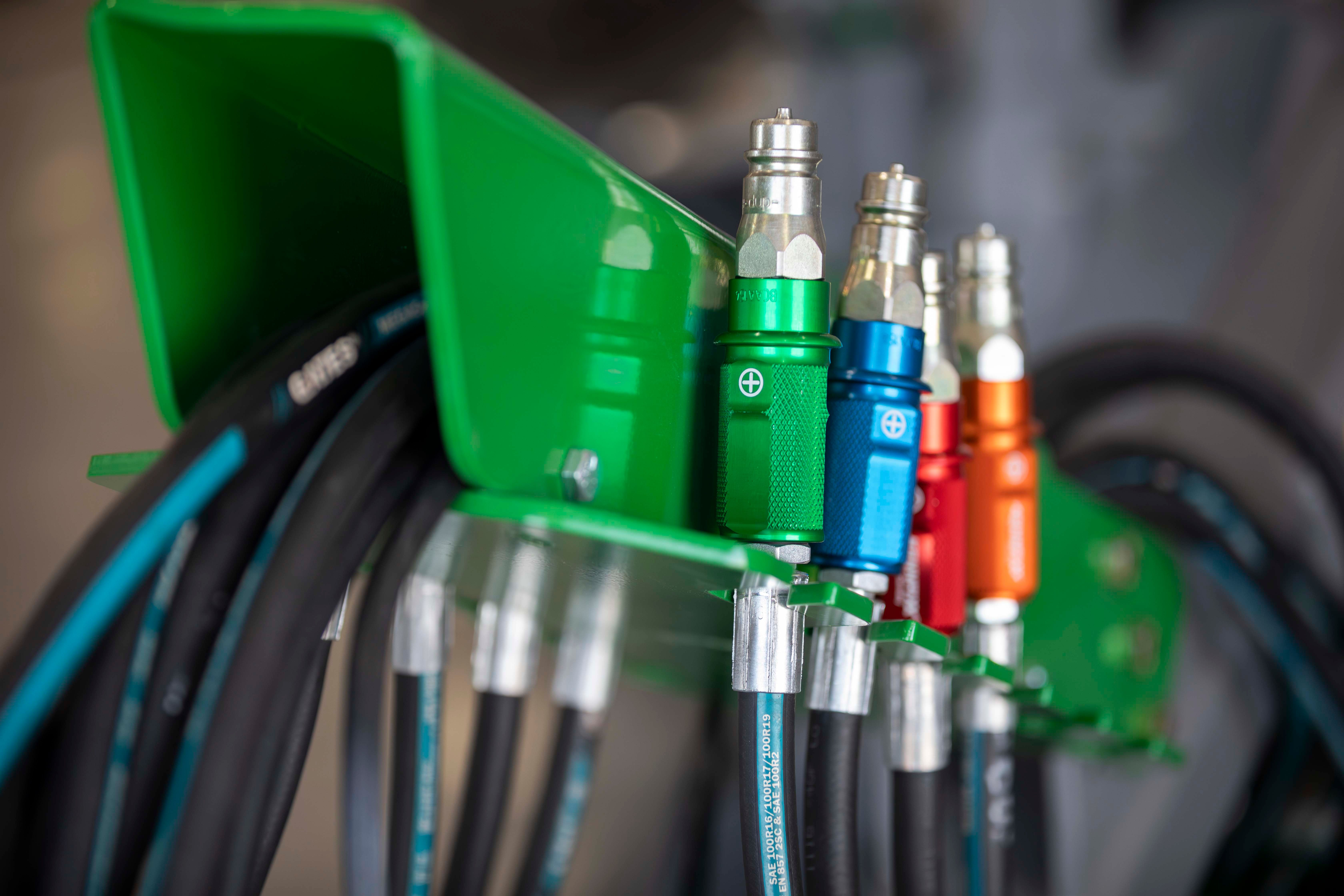

Color coded hydraulic couplers and maintenance free depth stops make operating the HYPERDISC hassle free.
