HYPERDISC H Series

The APEX HYPERDISC H is a versatile high speed tillage tool made to manage heavy residue, shred weeds, level ruts and prepare perfect seed beds.

Designed specifically for row crop tractors; to ensure maximum output with less horsepower.

In its class the HYPERDISC H is the lowest cost of ownership high speed tillage tool on the market without compromising quality.

1. Productivity meets affordability

The HYPERDISC H delivers high daily output with minimum effort:

Cover more acres per hour; this machine is designed to operate at high speeds of 8 to 12 mph, ensuring you get more done with less time.
Greaseless technology is used on all hinge points, reducing maintenance time and getting your equipment into the field faster.
Designed with efficiency in mind the HYPERDISC H is designed for less fuel consumption without compromising weight above the discs sections.

The HYPERDISC H is a tool designed for many different applications:

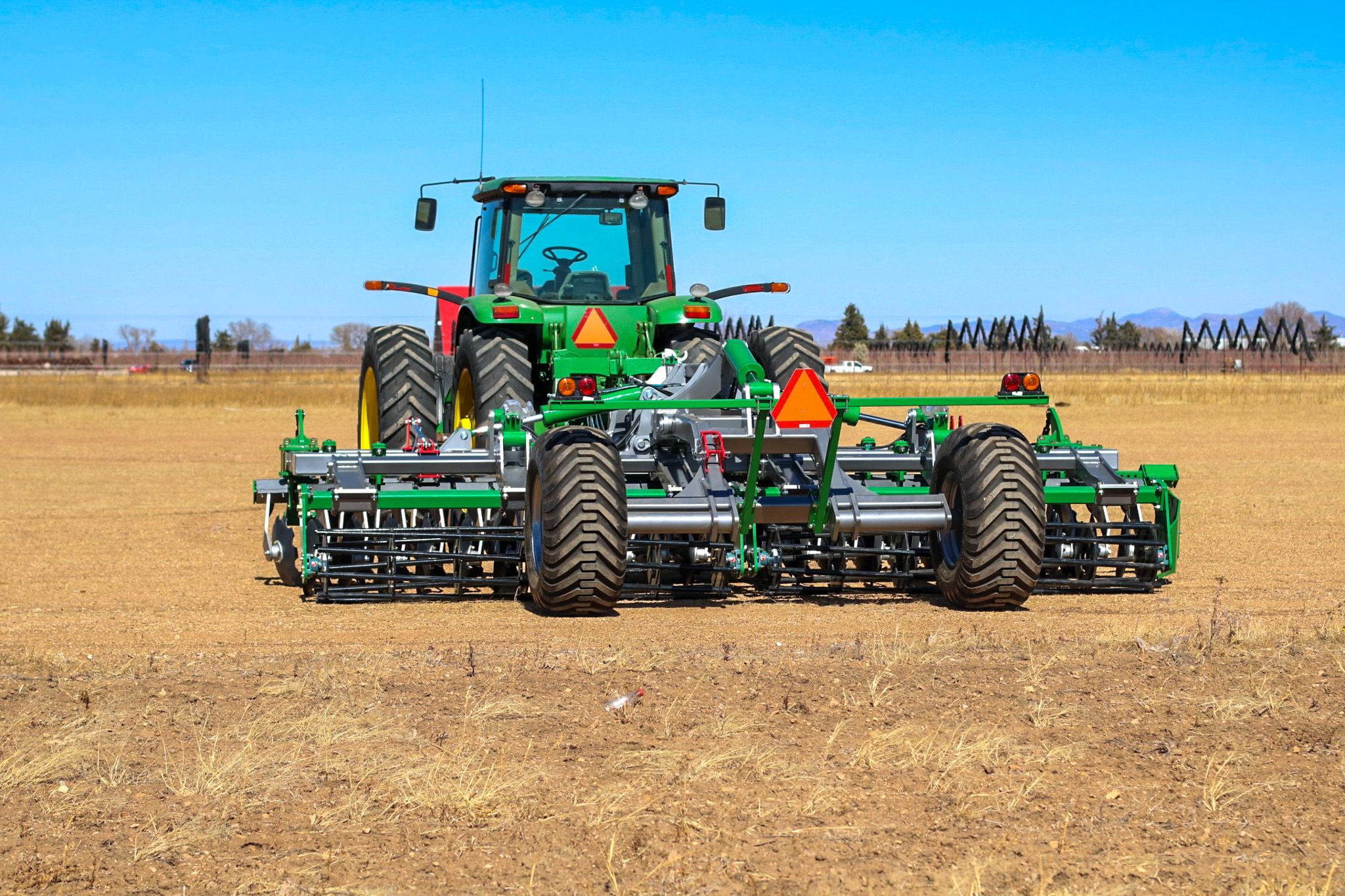

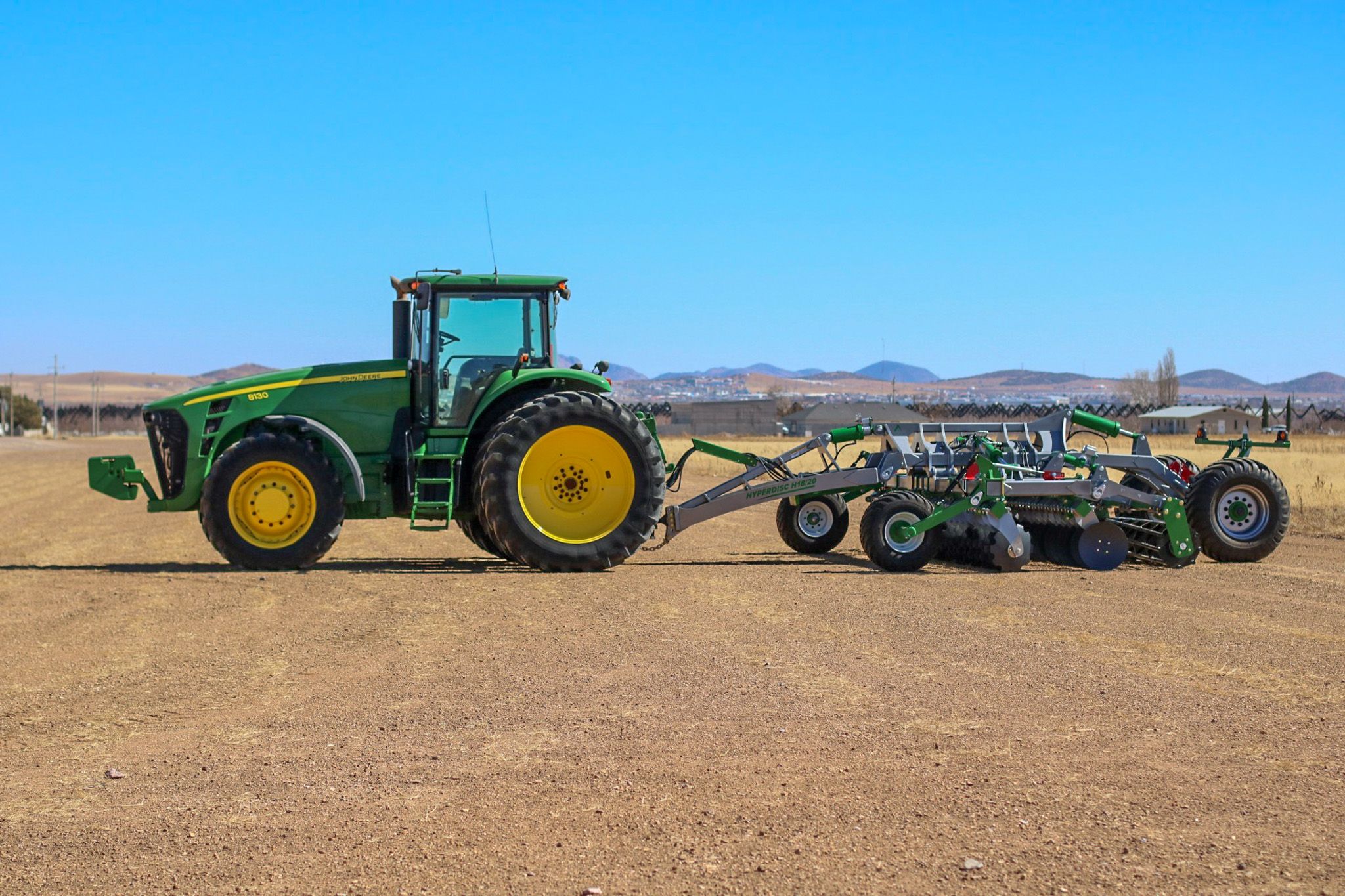

Designed to be pulled by row crop tractors, making high speed tillage more accessible.
Turn and shred heavy residue; from thick stubble and weeds to cover crops and grasslands.
Destroy clods, level ruts, and leave a perfectly prepared seed bed.
With easy-to-use and maintenance free depth adjustments, you can till your fields from a shallow 2 inches down to 6 inches deep.

The HYPERDISC H is engineered to withstand nearly any condition:

The engineered carriage frame delivers the durability you expect, and the weight you need for the

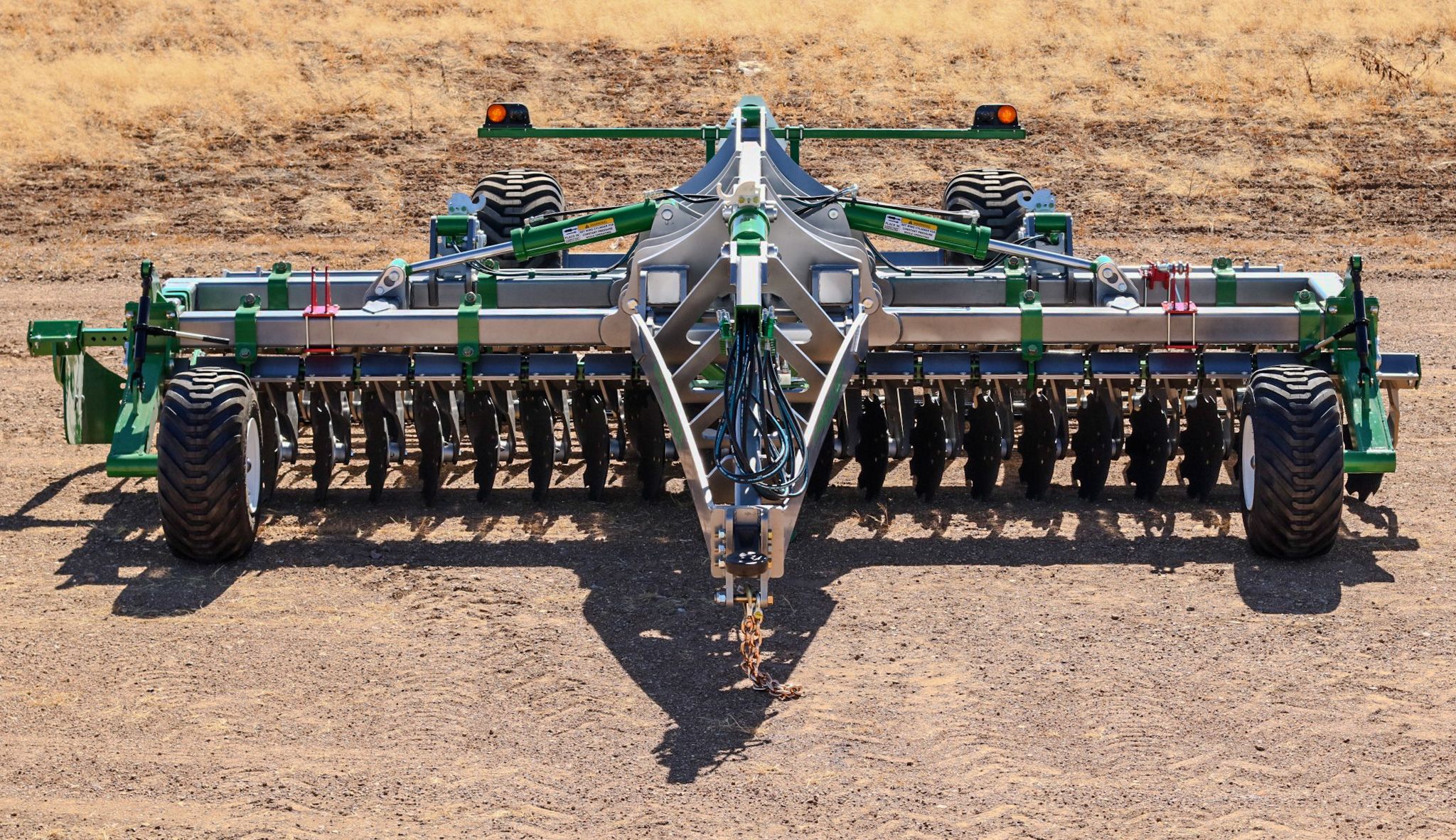

The machine is designed for a balanced, and straight pull.
The weight is concentrated where it's needed most: at the discs, with a downforce of nearly 1000 lbs/ft.

	HYPERDISC H18	HYPERDISC H20	HYPERDISC H22	HYPERDISC H24
Performance
Acres per hour at 12 MPH	26 acres per hour	28 acres per hour	30 acres per hour	32 acres per hour
Horsepower requirement	250-300	280-340	310-370	340-400
Working width	18 ft	20 ft	22 ft	24 ft
Working depth with 20" discs	2" - 6"	2" - 6"	2" - 6"	2" - 6"
Working depth with 22" discs	2" - 8"	2" - 8"	2" - 8"	2" - 8"
Specifications
Number of discs	42	46	50	54
Disc size	20" / 22"	20" / 22"	20" / 22"	20" / 22"
Front disc angle	14 degrees	14 degrees	14 degrees	14 degrees
Rear disc angle	17 degrees	17 degrees	17 degrees	17 degrees
Disc spacing	5"	5"	5"	5"

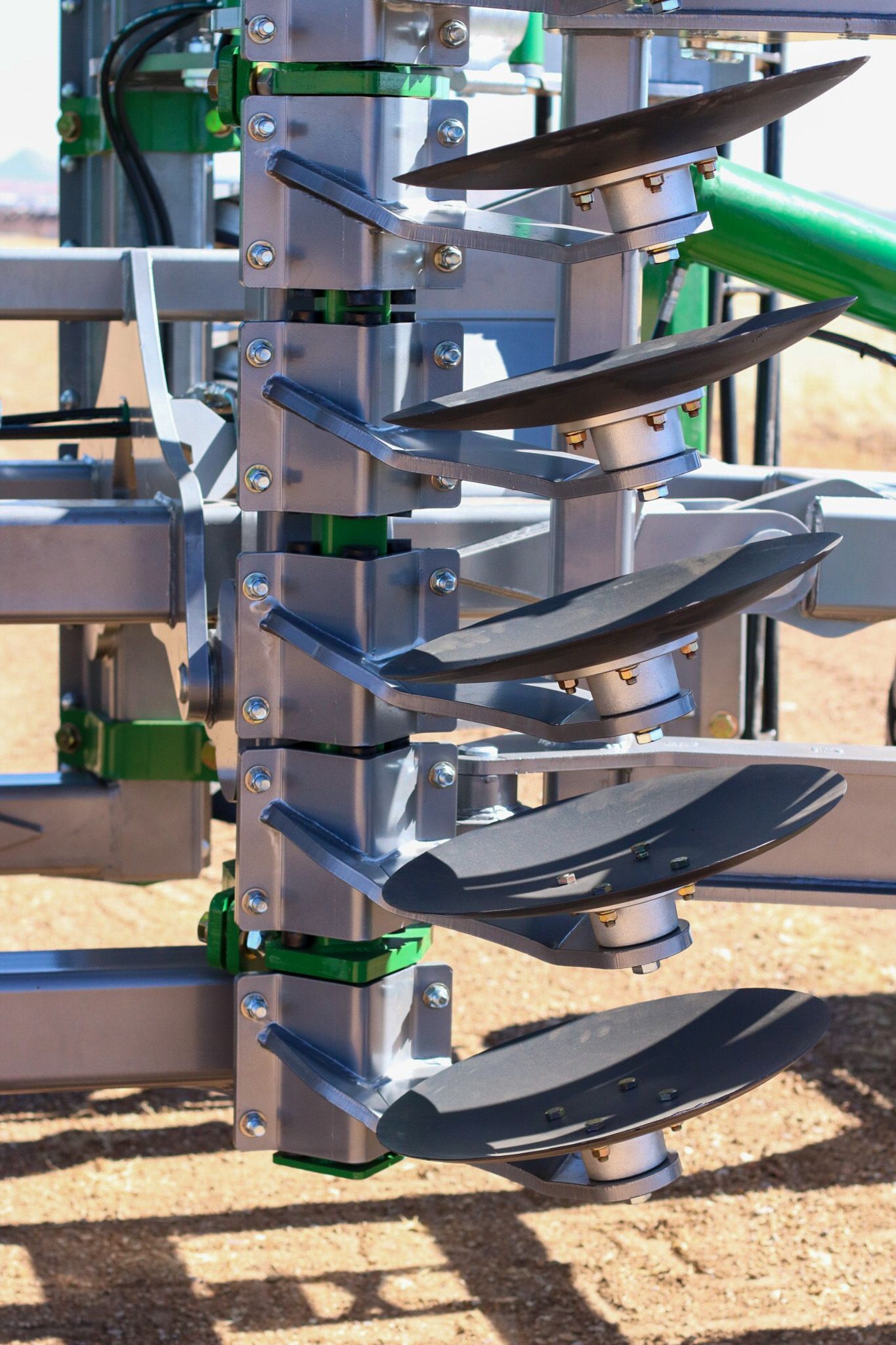

Disc mounting	1 5/8" rubber torsion rods	1 5/8" rubber torsion rods	1 5/8" rubber torsion rods	1 5/8" rubber torsion rods

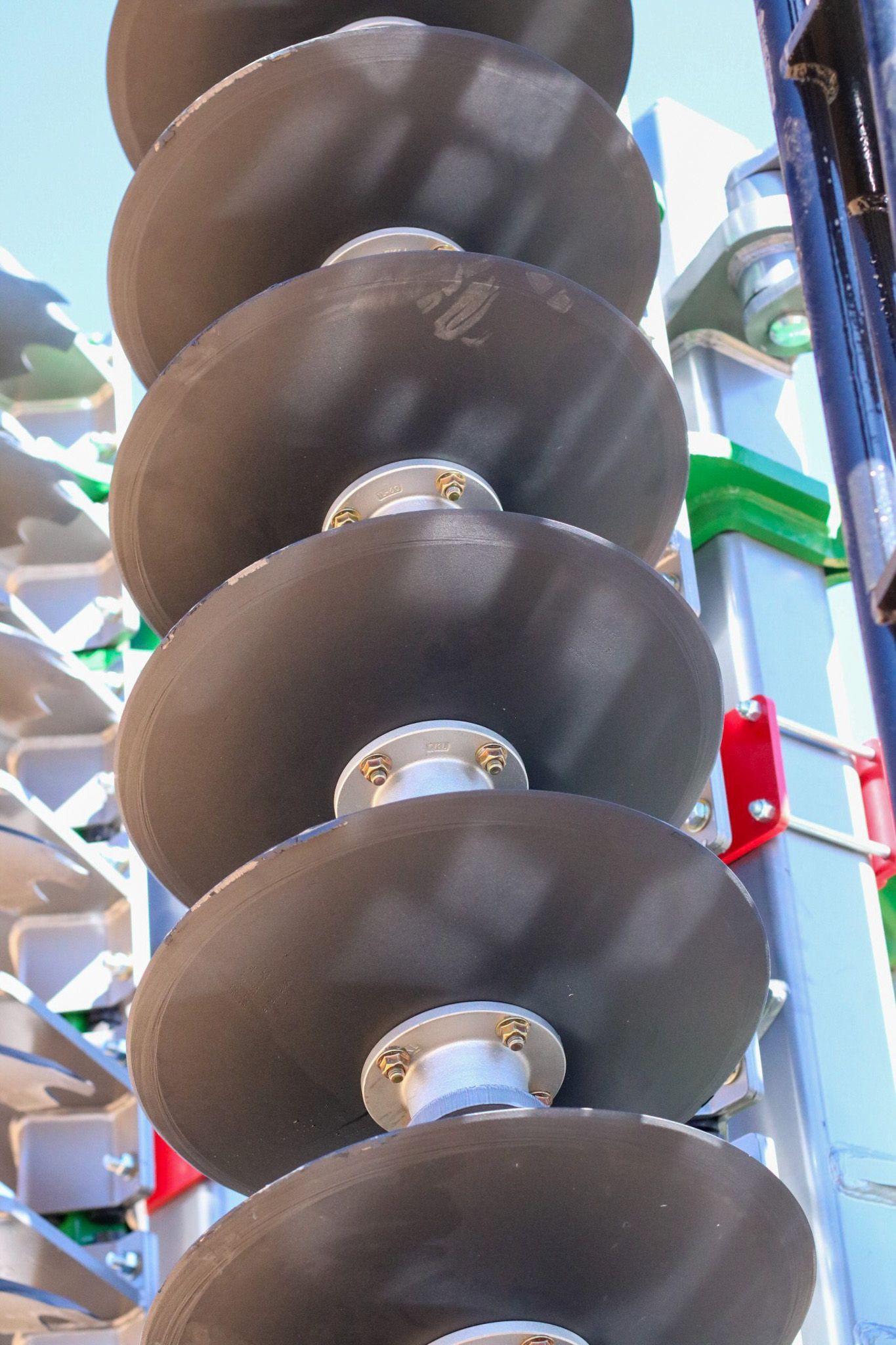

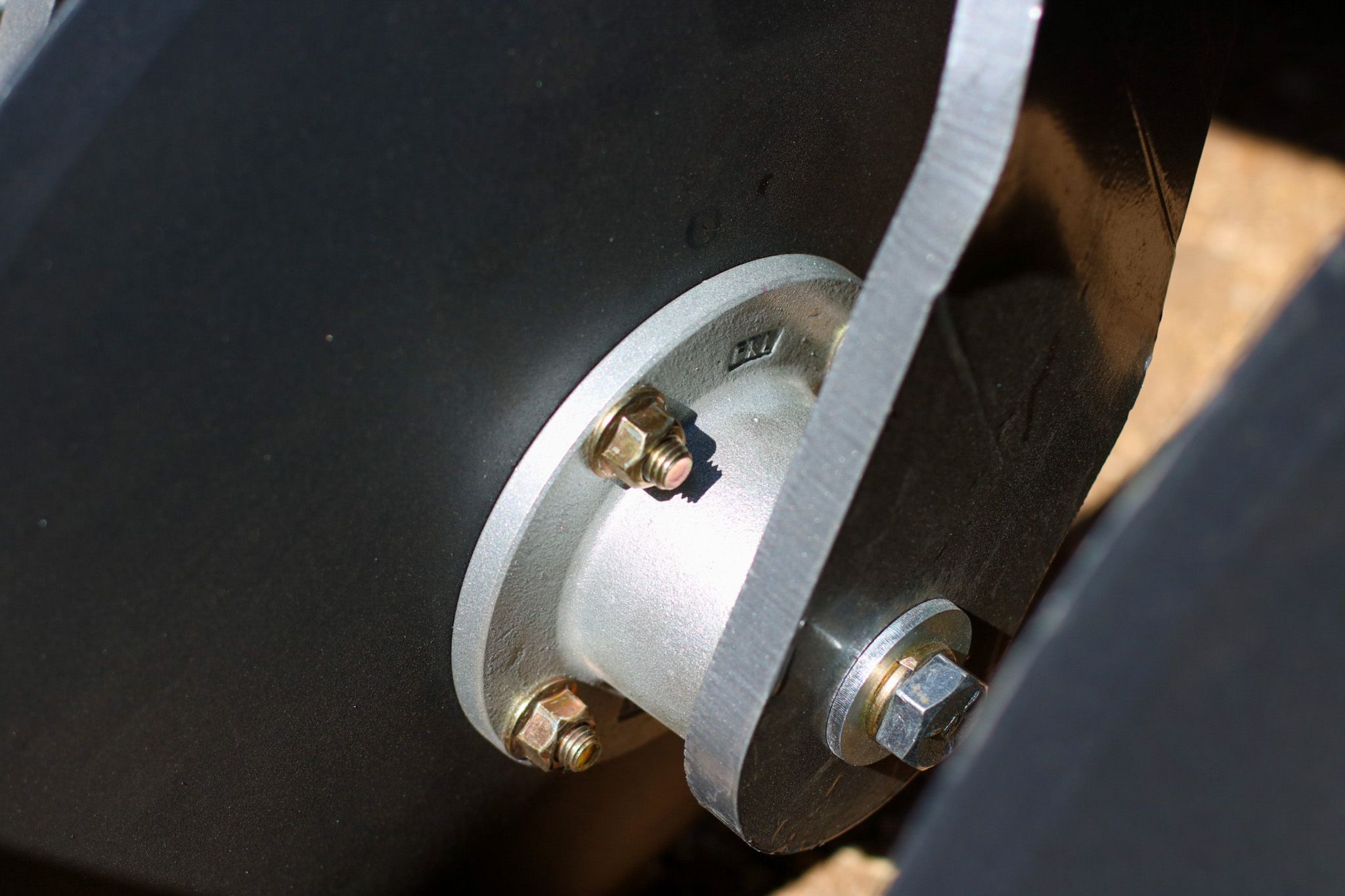

Disc hubs	FKL Maintenance free bearing hubs	FKL Maintenance free bearing hubs	FKL Maintenance free bearing hubs	FKL Maintenance free bearing hubs

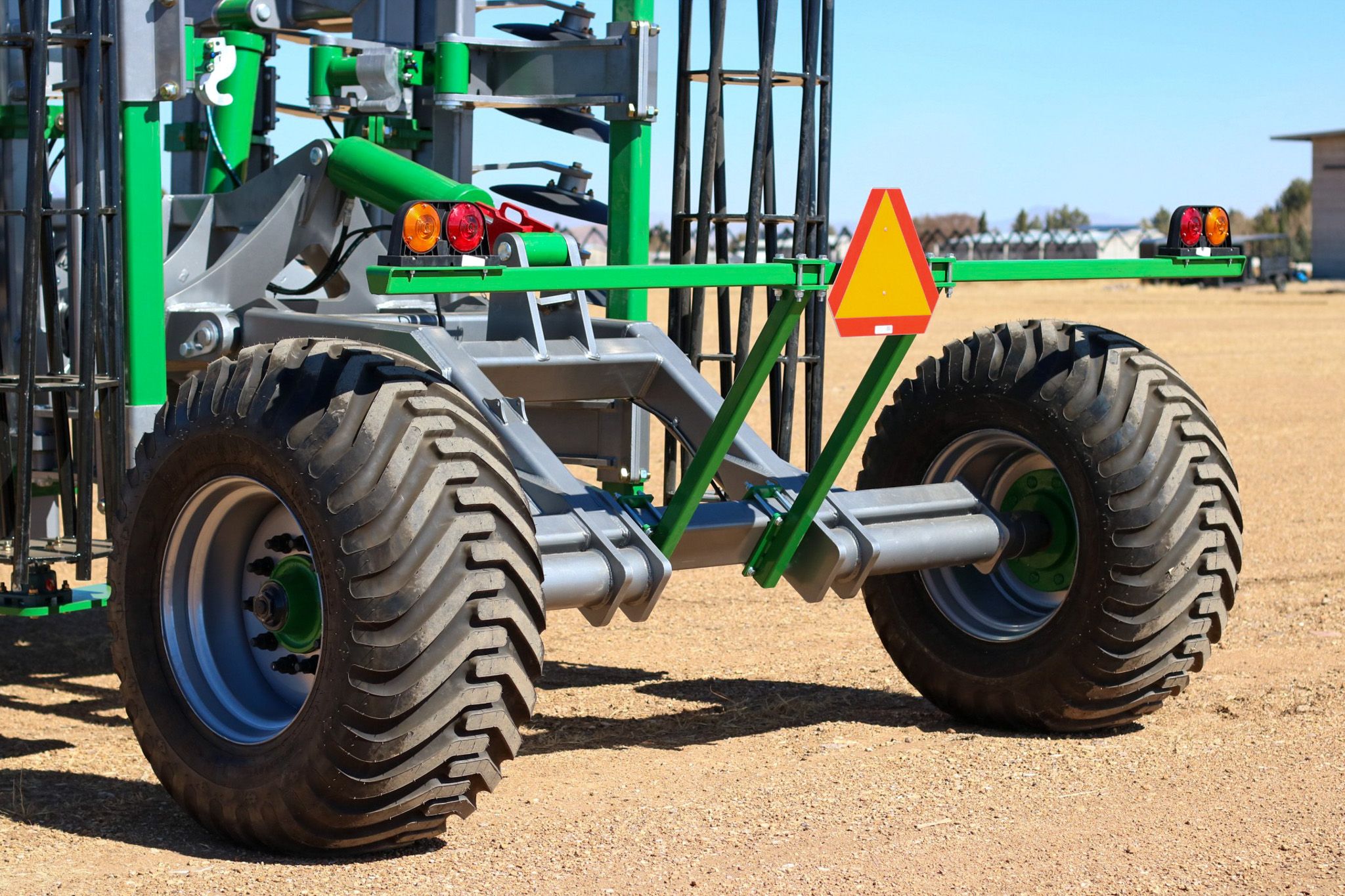

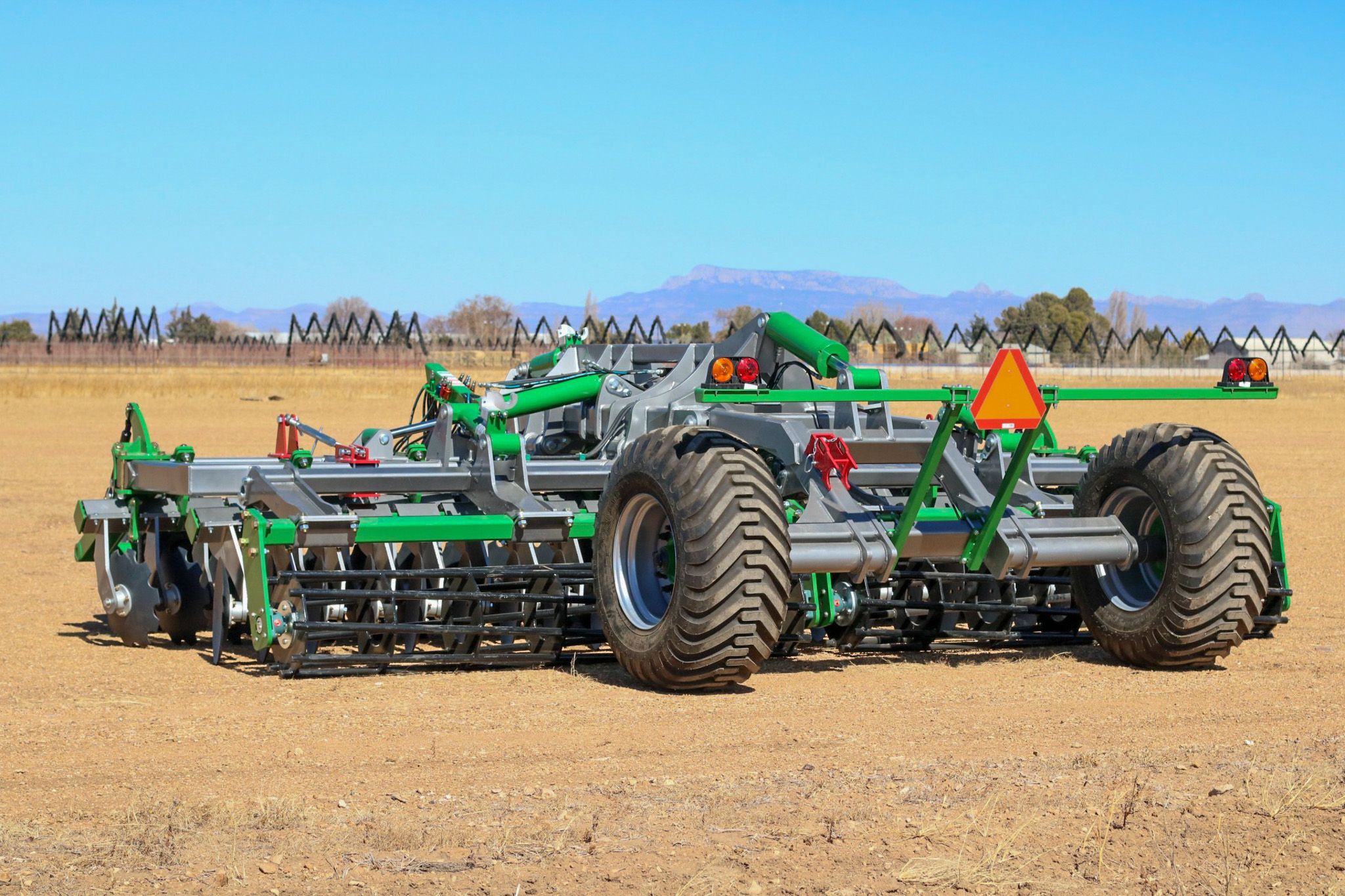

Transport tires	500/60 R22.5 flotation tires	500/60 R22.5 flotation tires	500/60 R22.5 flotation tires	500/60 R22.5 flotation tires
Gauge wheel tires	500/60 R15.5 flotation tires	500/60 R15.5 flotation tires	500/60 R15.5 flotation tires	500/60 R15.5 flotation tires
Gauge wheels	Manual	Manual	Manual	Manual

All pins have self lubricating composite bushings making the machine maintenance free.

The robust cage roller is constructed from 1.5" solid steel bars, for maximum strength and durability.

Every inch of the machine is built from premium, high strength, high tensile steel, ensuring structural resilience.

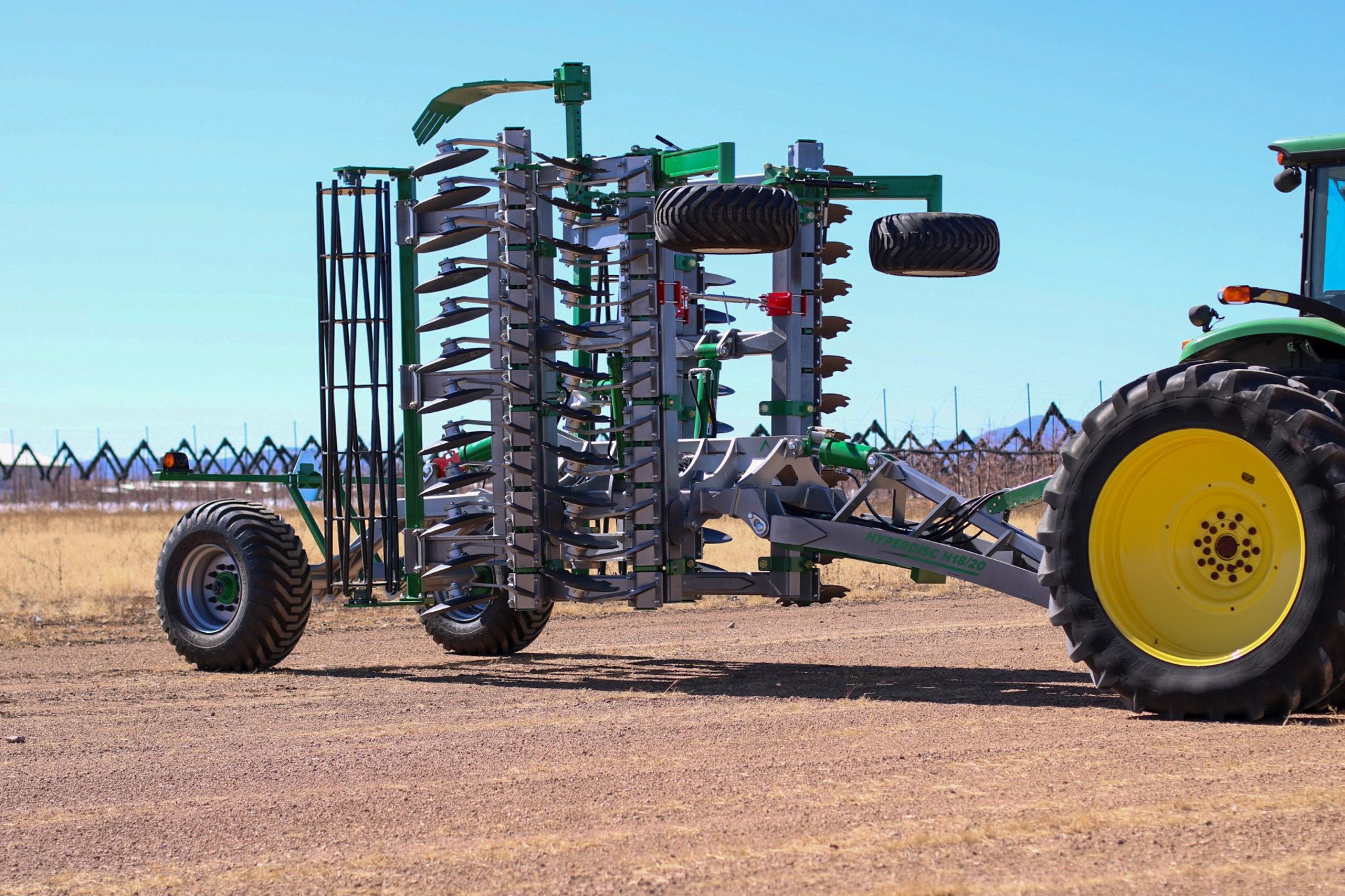

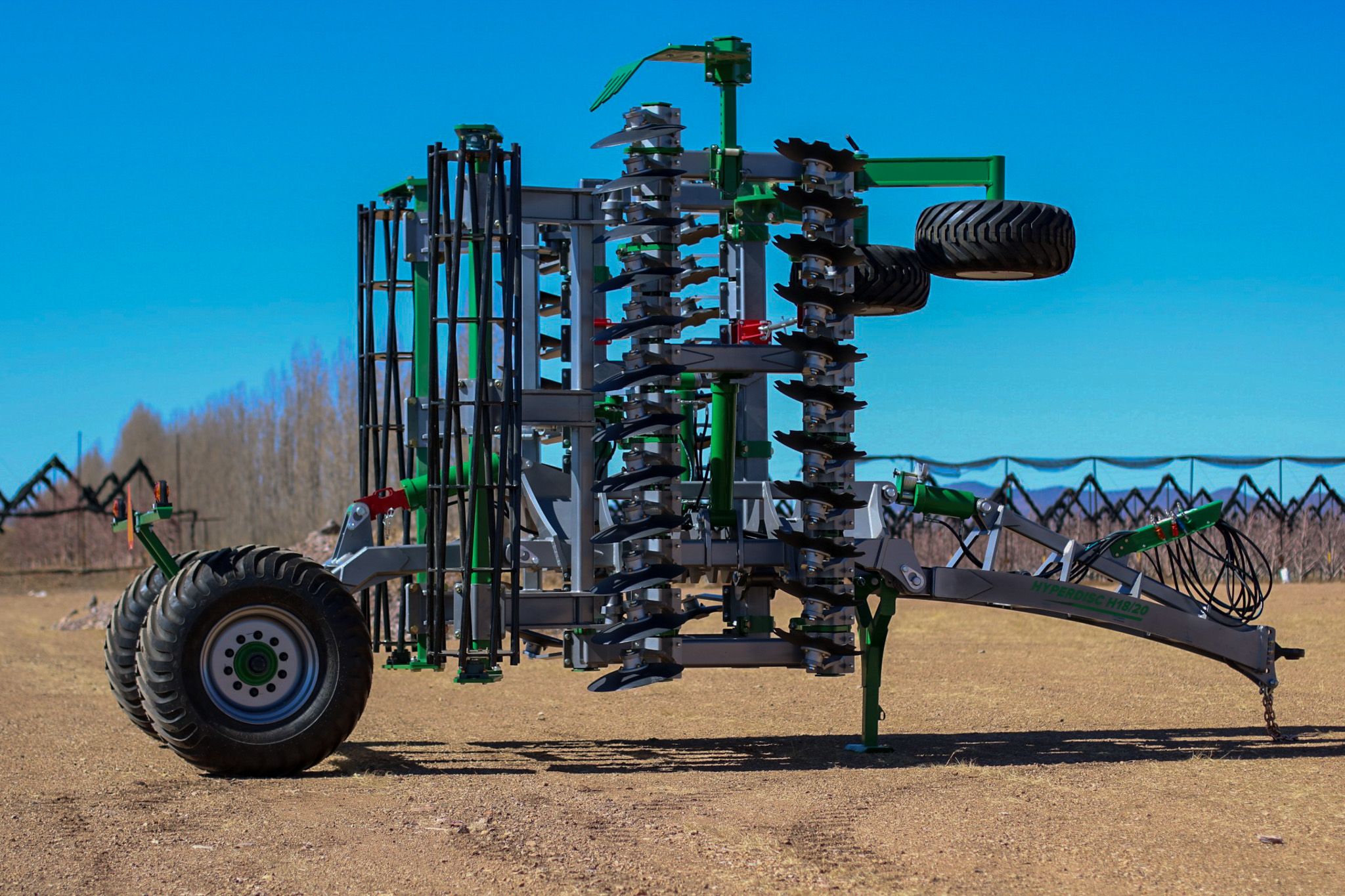

The machine is built to float across any kind of terrain curvature, adapting seamlessly to hills, slopes, and steep inclines.

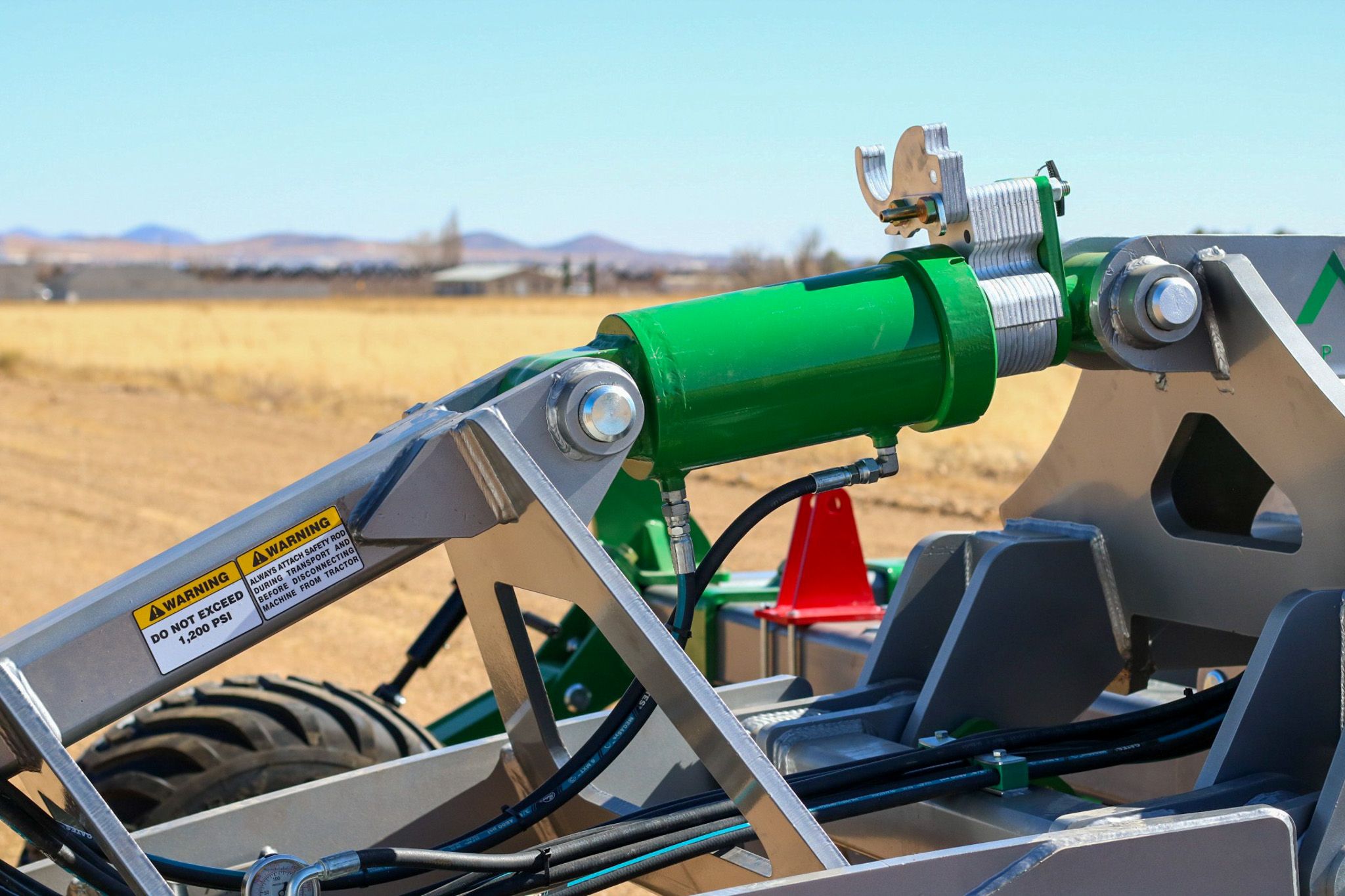

An adjustable hydraulic pressure system ensures consistent and even ground contact for optimal performance.

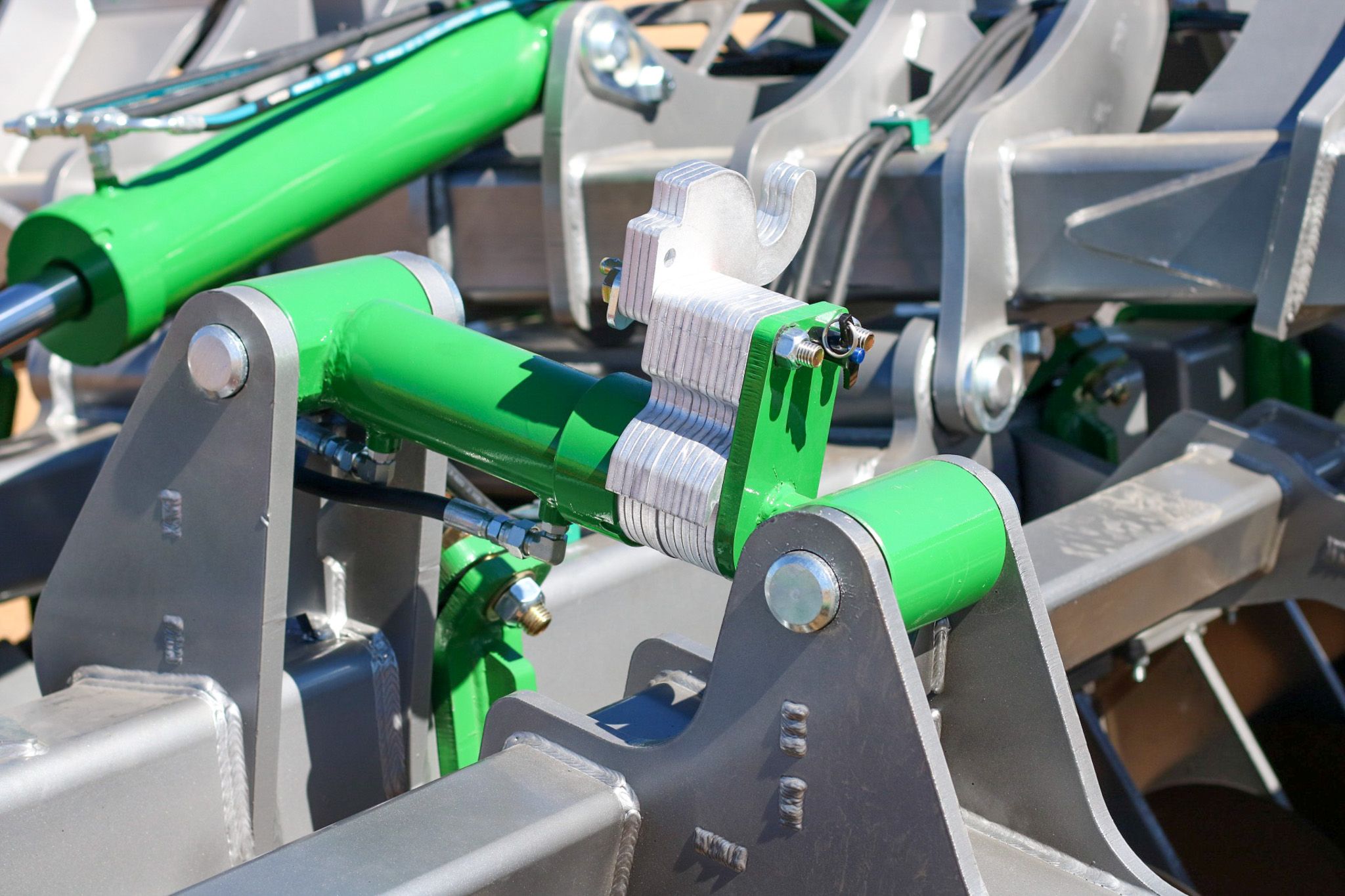

Color coded hydraulic couplers and maintenance free depth stops make operating the HYPERDISC hassle free.
